402-760 Thermocouple TCdirect

Liên hệ tư vấn

Ms Như

nhu@ansgroup.asia

0373238670

0373 238 670

live:.cid.5bbb32e4b8465e80

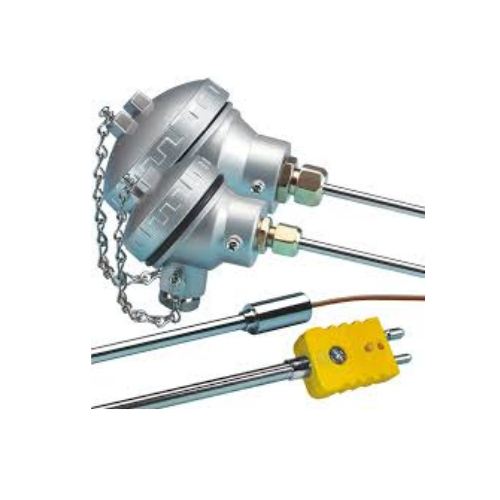

402-760 Thermocouple TCdirect Vietnam

Thông số kỹ thuật điển hình

  • Loại cảm biến: Thermocouple (thường Type K hoặc J)
  • Dải đo nhiệt độ:
    • Type K: ~ -200 → +1200°C
    • Type J: ~ -40 → +750°C
  • Đường kính đầu dò: phổ biến 3mm – 8mm
  • Chiều dài: tùy chọn theo yêu cầu
  • Vật liệu vỏ: Inox (SS304 / SS316)
  • Kiểu đầu nối: dây rời / terminal head / jack
  • Độ chính xác: Class 1 / Class 2

 Tính năng nổi bật

  • Chịu nhiệt cao, phản hồi nhanh → phù hợp lò nung, gia nhiệt
  • Độ bền cơ học tốt → dùng được môi trường rung, bụi
  • Chi phí thấp hơn RTD trong ứng dụng nhiệt cao
  • Dễ thay thế, tùy biến theo yêu cầu (length, probe, connector)

 Ứng dụng

  • Lò nung, lò nhiệt luyện
  • Máy ép nhựa, khuôn gia nhiệt
  • Ngành thép, xi măng
  • Dây chuyền sản xuất công nghiệp
  • HVAC & hệ thống kiểm soát nhiệt

LIST CODE

1 Recheck Origin TCdirect Vietnam Model: 402-760 Thermocouple
Rapid Response Polyimide Self Adhesive Flat Film Thermocouple
Pack of 5 Type K Standard Version
1 pack=5 pcs ; 12 packs=60 pcs ; unit = GBP/packs
2 Recheck Origin TCdirect Vietnam Model: 402-765 Thermocouple
Rapid Response Polyimide Self Adhesive Flat Film Thermocouple
Pack of 5 Type K Narrow Version
1 pack=5 pcs ; 12 packs=60 pcs ; unit = GBP/packs
3 Recheck Origin TCdirect Vietnam Model: 402-790 Thermocouple
Rapid Response Polyimide Self Adhesive Flat Film Thermocouple
1mtr Cable with Integral Connector*
needs to be one for each thermocouple
4 Recheck Origin TCdirect Vietnam Model: 724-102 Connector
Rapid Response Polyimide Self Adhesive Flat Film Thermocouple
Type K Miniature Plug
1 100% Germany Origin BRAUN Vietnam Item no.: E1612-Rev1 Controller
Spare Part (Valve Control Module) for E16A358/E16A359 systems
2 100% Germany Origin BRAUN Vietnam Item no.:  E1613-Rev1 Controller
Spare Part (Valve Control Module) for E16A358/E16A359 systems
3 100% Germany Origin BRAUN Vietnam Item no.: E1668.221 Safety Monitor & Protection System
BRAUN High Safety Protection System Series E16E368
Spare Part (Speed Monitor) for E16x35y.221 systems
4 100% Germany Origin BRAUN Vietnam Item no.: E1698.32 - Test Generator E1698  Generator Tester
BRAUN High Safety Protection System Series E1698
Spare Part (Testgenerator) for E16x356/E16A358/E16A359 systems
5 100% Germany Origin BRAUN Vietnam Item no.: A5S05WE90 Speed Sensor
Speed Sensor acc. manual/data sheet A5S05E_WE,
thread M14x1,5 with nominal length 90mm,
with angular connector end (which incorporates STW9 and SD4K).
Note: mating connector BS4K is not included
Attention: only available as spare part, not for new application
6 100% Germany Origin BRAUN Vietnam Item no.: E16-Parameter-Tool-Level2
Set with
IS-RS232-E16-L2 (interface software on data stick)
L3D05 (adapter cable)
USB/RS232 (converter)
Note: Set is not necessary, if parameters are set by the front side keys of the module
composed of:
1 piece(s) L3D05
1 piece(s) USB/RS232
1 piece(s) DS1
1 piece(s) Verschlussbeutel A6
1 100%  USA Origin Larsonelectronics Vietnam Item : IND-SFC-3P-75KVA-380-50HZ-480-60HZ
75 KVA Solid-State Voltage Frequency Converter - 380V 50 Hz Input to 480V 60 Hz Output - Mobile w/ Wheels
2 100%  USA Origin Larsonelectronics Vietnam Item : IND-SFC-3P-120KVA-380-50HZ-480-60HZ
120 KVA Solid-state Voltage Frequency Converter - 380V 50Hz to 480V 60Hz - 3PH Delta
3 100%  USA Origin Larsonelectronics Vietnam Item : IND-SFC-3P-100KVA-380-50HZ-480-60HZ
100 KVA Solid-state Frequency Converter - 380V 50 Hz Input to 480V 60 Hz Output - Mobile w/ Wheels
4 100%  USA Origin Larsonelectronics Vietnam Item :IND-SFC-3P-150KVA-380-50HZ-240-60HZ
150 KVA Solid-state Voltage Frequency Converter - 380V 50Hz to 240V 60Hz - 3PH Delta
1 100% Finland Origin Vaisala Vietnam HMP155 A2BG14B1B1B1A2A
Humidity and Temperature Probe for Outdoor Applications
Probe Type: HMP155A: Analog Output for Humidity and Temperature
Signal Output Selection: 0...1V
First Analog Parameter to be Reported (Channel 1): RH 0...100%
Second Analog Parameter to be Reported (Channel 2): Temperature -40...+60 °C (-40…+140 °F)
Reporting Units in Data Message  Metric Units
Humidity Sensor Type: Composite Sensor InterCapC
Heating Options to Avoid Condensation Issues: Warmed Probe
Chemical Purge for Better Long Term Stability: Periodical Chemical Purge, Specific Time Intervals
Protective Filter for Sensing Elements in Probe Head: Membrane Filter 12,0mm UV-stabilized  PC, White
Data output Cable: 3.5m Cable with Connector on HMP155 End + Open Leads on the Other End
External Temperature Probe: T-probe with 2m Cable
Calibration: RH&T-calibration in room temperature
Installation Accessories for Radiation Shields: Installation Adapter for Additional T-Probe to DTR502
Hmp155 Sub Assembly
2 100% Finland Origin Vaisala Vietnam 230727SP
Plastic Grid with Membrane Filter
3 100% Finland Origin Vaisala Vietnam DTR502
Radiation Shield for QMH102
