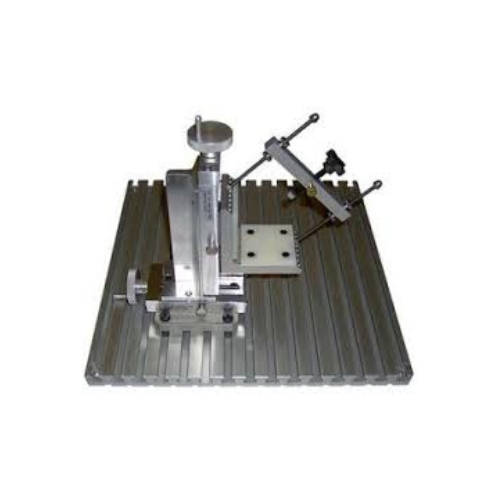

843-102-000-011 CTS 102 COGGING TEST SYSTEM Magtrol
Ms Như
0373 238 670
live:.cid.5bbb32e4b8465e80843-102-000-011 CTS 102 COGGING TEST SYSTEM Magtrol Vietnam
843-102-000-011 là mã đặt hàng của hệ thống CTS 102 Cogging Test System – thiết bị chuyên dùng để đo mô-men cogging (Cogging torque), detent torque và ma sát của động cơ điện.
Thành phần hệ thống
- Motor chính xác quay chậm (1–10 rpm)
- Cảm biến torque TS Series + encoder 5000 ppr
- Bộ khung gá motor (fixture)
- Phần mềm đo & phân tích trên PC
- Giao tiếp USB
Chức năng chính
- Đo:
- Cogging Torque
- Detent Torque
- Friction Torque
- Hiển thị:
- Biểu đồ X-Y
- Polar plot
- FFT (phân tích tần số)
- So sánh nhiều lần đo (overlay nhiều curve)
- Xuất dữ liệu: TXT / Excel
LIST CODE
| 1 | 100% Switzerland Origin | Magtrol Vietnam | Model: 843-102-000-011 CTS 102 COGGING TEST SYSTEM 200mNm Cogging Test System Measuring range: 0 - 200 mNm Accuracy: 0.05% of rated torque Speed: 1 - 10 rpm Shaft height: 100 mm Mounted on PT-25 base, length 600 mm With USB interface Incl. Control and Data Acquisition Software (LabVIEW exe) |
| 2 | 100% Switzerland Origin | Magtrol Vietnam | Model: 424-102-000-211 TS 102/211 0.2Nm 5000PPR Torque Sensor with smooth shaft Analog and USB outputs Rated Torque 0.2 Nm, Accuracy <0.05% Max Measurable Torque 0.4 Nm Max speed 1000 rpm With 5000 Bits Encoder (A, B, Z) Incl. 3 m. analog and 2 m. USB cables |
| 3 | 100% Switzerland Origin | Magtrol Vietnam | Model: 843-105-000-011 CTS 105 COGGING TEST SYSTEM 2Nm Cogging Test System Measuring range: 0 - 2Nm Accuracy: 0.05% of rated torque Speed: 1 - 10RPM Shaft height: 180mm Mounted on PT-25 base, length 800 mm With USB interface Incl. control and data acquisition software (LabVIEW exe) |
| 4 | 100% Switzerland Origin | Magtrol Vietnam | Model: 424-105-000-211 TS 105/211 2Nm 5000PPR Torque Sensor with smooth shaft Analog and USB outputs Rated Torque 2 Nm, Accuracy <0.05% Max Measurable Torque 4 Nm Max speed 1000 rpm With 5000 Bits Encoder (A, B, Z) Incl. 3 m. analog and 2 m. USB cables |
