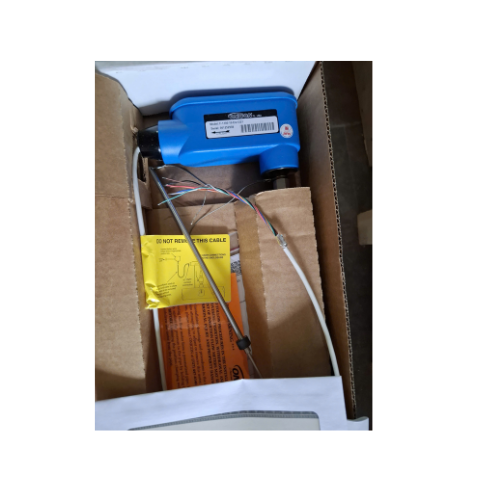

Cảm biến lưu lượng F-1100 Onicon Việt Nam

Đặc điểm nổi bật

• Thiết kế dạng chèn (insertion) → lắp trực tiếp vào đường ống, không cần cắt ống
• Công nghệ tuabin điện tử độc quyền cho độ chính xác cao và ổn định
• Hỗ trợ hot-tap → lắp đặt khi hệ thống vẫn đang hoạt động
• Đo chính xác trong dải rộng, kể cả lưu lượng thấp
• Độ bền cao với:
  • Vòng bi sapphire
  • Trục tungsten carbide

Thông số kỹ thuật chính

• Dải kích thước ống: ¾” đến 72”
• Độ chính xác:
  • ±0.5% giá trị đo (điểm hiệu chuẩn)
  • ±1–2% toàn dải
• Dải vận tốc: ~0.17 → 30 ft/s
• Ngõ ra tín hiệu:
  • 4–20 mA
  • 0–10 V
  • Frequency / Pulse
• Nguồn cấp: 24 VAC/DC (tùy model)
• Chuẩn bảo vệ: NEMA 4

LIST CODE

1 100% EU/ Hungary/ Germany Origin

Balluff Vietnam

BCC032L

BCC M415-0000-1A-014-PS0434-050

Connectivity

 1 100% USA Origin

Onicon Vietnam

MODEL: F-1100-10-B2-1221

Single turbine insertion flow meter with freq, analog and scaled pulse output, plated brass stem,  NEMA 4 enclosure and 10' PVC cable.

 1 100% UK Origin

E2S Vietnam

Model:  A112NAC230AA0A1

Description:  A112N 100-240Vac

A: Back box/cable entries: 2 x entries

A: Stopping plug material: ABS

0: Equip. tag/Duty label: No equip. tag or Duty label

A: Product version: See product data sheet

1: Product option: Standard

<3 janjhq 1 100% USA Origin

Comark Vietnam / NemaVision-iPC VietNam
Comark Viet Nam / NemaVision-iPC Viet Nam
Comark-Vietnam / NemaVision-iPC-VietNam

iPC1950Ti711-8GB256SDVD2PW10DCRMC1D2 - Industrial PC - iPC -Plus - - Computer IPC

iPC1950T-i711-8GB-256SS-DVD-2P-W1064-DC-RM-C1D2 - Computer IPC

19” SXGA (1280 x 1024) LED backlit LCD display

Intel i7-11850HE CPU, Eight Core, 2.60GHz, 24M cache

5-wire Analog Resistive Touchscreen

8 GB DRAM

256GB SATA Solid State Drive

Two PCI slots

Extensive Connectivity

- Dual Gigabit (10/100/1000) Intel Ethernet ports

- One RS-232/422/485 serial port (BIOS selectable)

- One RS-232 serial ports

- Two USB 2.0 and Four USB 3.0 ports

- PS/2 port

- Additional Analog Video port or HDMI port (supports dual video)

Easily Removable SATA DVD-R/W drive

Integrated 10-30VDC power supply

Rackmount Powder Coated Aluminum Front Panel

Rackmount Powder Coated Aluminum Front Panel (Rackmount front panel is not NEMA 4/4x/12 and is required to be installed on a rack in a Type 1 enclosure)

FCC/CE/UL61010/C1D2 Certifications

0 to 55 Celcius operational temp rating

Class I & II Division 2 Approved when installed in a NEMA enclosure

Windows 10 IoT LTSC 2021 (64-bit) - i711

<3 JPROHQ 1 100% USA  Origin

MAPLE SYSTEMS VietNam - MAPLE-SYSTEMS-VietNam - MAPLE SYSTEMS Viet Nam

Model: cMT3108XH

cMT HMI, 1280x800 Res. 10.1" WVA LCD, Quad- Core RISC CPU, Two Ethernet Ports, Two Serial Ports, CANbus. Class I, Division II.

2 100% USA  Origin

MAPLE SYSTEMS VietNam

Model: HMI5040Bv2

Graphic HMI 4.3" 16M-Color Display with Touchscreen, One USB Port, One Serial Port, and One Ethernet Port. Dark Grey Plastic Enclosure

NON-UL.

TuyChon

3 100% USA  Origin

MAPLE SYSTEMS VietNam

Model: MS1-U05L

Industrial Network Switch, Unmanaged, 5 x 10/100 RJ45

TuyChon

4 100% USA  Origin

MAPLE SYSTEMS VietNam

Model: M02

Module, Expansion, Wi-Fi, cMT

TuyChon

5 100% USA  Origin

MAPLE SYSTEMS VietNam

Model: 4010-0011

Power Supply, Single Output, DIN Rail, 2.5A

1 100% China Origin

RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD

Part No.:   VES7.2-02 (build in VES12-02)

Transformer

Outline Drawing: RS122Z4001.02

6.6/v3:0.1/v3 kV winding 1: 0.5 ,50VA VF:1.9Un/8h 50Hz, E IL: 7.2/20/60kV IEC61869-3

2 100% China Origin

RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD

Part No.:   ASS7.2-10 (build in ASS12-10)

Transformer

Outline Drawing: A 10-41-010.05

250/1A

Core 1: 10P10, 10VA Ith=25kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2

P1 close to secondary terminal

3 100% China Origin

RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD

Part No.:   ASS7.2-10 (build in ASS12-10)

Transformer

Outline Drawing: A 10-41-010.05

150/1A

Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2

P1 close to secondary terminal

4 100% China Origin

RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD

Part No.:   ASS7.2-10 (build in ASS12-10)

Transformer

Outline Drawing: A 10-41-010.05

2000/1A

Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2

P1 close to secondary terminal

5 100% China Origin

RITZ INSTRUMENT TRANSFORMERS (Shanghai) CO., LTD

Part No.:   ASS7.2-10 (build in ASS12-10)

Transformer

Outline Drawing: A 10-41-010.05

400/1A

Core 1: 10P10, 10VA Ith=31.5kA/1s IL: 7.2/20/60kV 50Hz, E IEC61869-2

P1 close to secondary terminal
