Ứng dụng thực tế

• Tự động hóa công nghiệp: Phát hiện vị trí piston và giám sát hành trình xi lanh.

• Dây chuyền lắp ráp: Xác nhận trạng thái đóng/mở của cơ cấu chấp hành khí nén.

• Máy đóng gói: Giám sát chuyển động của xi lanh trong chu trình đóng gói tự động.

• Máy móc sản xuất: Cung cấp tín hiệu phản hồi cho PLC và hệ thống điều khiển

  LIST CODE

  Model:  IN991197 Description: Sensor inductive, M32x1.5 91long, non-flush, Sn: 13,-25-230°C, connection to amplifier, lemo connector, IP50, VA

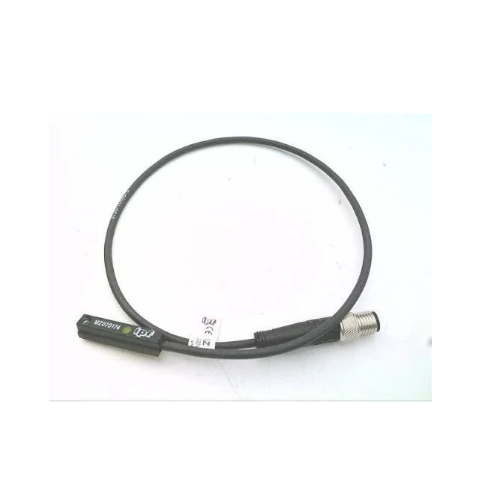

  Model:  MZ070174 Description: sensor magnetic, cylinder, 6.2mm T-groove, 6,3x30x6,2mm,  10-30V DC, 1x PNP NO, Cable connector M8 3pin 0.3m PUR  (Polyurethane), IP67, Zinc die-cast, LED, 2.5mT, mounting  Lateral, Short travel path, Sensor surface position Center of  the device

  Model:  KV750450 Description: Amplifier capacitive, high temperature, 30x47x75mm, 18-36V  DC, cable tail 2m PUR (polyurethane), IP65, polyamide, LED

  Model:  IN32E332 Description: Sensor inductive, M32x1.5 83.5long, non-flush, Sn: 13,  0-230°C, connection to amplifier, lemo connector, IP67, stainl Steel

  Model:  VKC0E333 Description: Connection cable, 30m, Female (socket) 2pin Straight, Free conductor end, 2x0.25mm², Polytetrafluorethylene (PTFE), Shielded

  Model:  MZR40178 Description:  Sensor Magnetic, cylinder, 3.75mm round groove, Ø3.6mm 20long, 10-30V DC, 1x PNP NO, M8 cable connector 3-pin 0.3m PUR (polyurethane), IP67, stainl. steel, LED, 2.8mT, lateral installation, position of sensor surface at the edge of the device

  Model:  VD589822 Description: Encoder, programmable, Ø58mm 45long, hollow shaft 12mm, 65536 pulses, 5-30V DC, M12 connector 8-pin, IP65,  aluminum

  Model:  IB18C340 Description: sensor inductive, M18x1 70long, Flush, Sn: 5, 10-35V DC,-25-180°C, PNP NC, Cable 5m Polytetrafluoreth  (PTFE), IP50, Stainless steel 1.4305, ATEX

  Model:  IB18C339 Description: sensor inductive, M18x1 70long, Flush, Sn: 5, 10-35V DC,-25-180°C, PNP NO, Cable 5m Polytetrafluorethylene  (PTFE), IP50, Stainless steel 1.4305, ATEX

  Model:  IN991197 Description: Sensor inductive, M32x1.5 91long, non-flush, Sn: 13,-25-230°C, connection to amplifier, lemo connector, IP50, VA

  Model:  VKAE6941 Description: Connection cable, 15m, Lemo Female (socket) 2pin Straight,  Free conductor end, 2x0.34mm², Polytetrafluorethylene  (PTFE), -40-250°C, Shielded

  Model:  IN991197 Description: Sensor inductive, M32x1.5 91long, non-flush, Sn: 13,-25-230°C, connection to amplifier, lemo connector, IP50, VA

  Model:  IN120170 Description:  Sensor inductive, M12x1 60long, non-flush, Sn: 6, 10-30V  DC, PNP NO, M8 plug connector 3-pin, IP67, nickel-plated (npltd) brass

  Model:  IB180121 Description:  sensor inductive, M18x1 72long, Flush, Sn: 5, 10-30V DC,  PNP NO, Connector M12 3pin, IP67, Brass Nickel-plated

  Model:  IN991197 Description: sensor inductive, M32x1.5 91long, non-flush, Sn: 13,-25-230°C, connection to amplifier, lemo connector, IP50, VA

  Model:  IV991196 Description: Amplifier inductive, high temperature, 75x99x22mm, 10-35VDC, PNP NO, terminal, IP20, plastic, LED

  Model:  VKAE6941 Description: Connection cable, 15m, Lemo Female (socket) 2pin Straight, Free conductor end, 2x0.34mm², Polytetrafluorethylene (PTFE), -40-250°C, Shielded

  Model:     PGKB0570 Description: Sensor laser, fork, 144x12x90mm, fork width 120mm, 10-30VDC, 1x PNP/NPN NC/NO, IO Link, M8 plug connector 3-pin, IP67, zinc diecast+glass, red light, 5kHz pulsed, manual setting *Note: we offered equivalent successor models as the requested items are no longer available. The new article code is PGKB0570

  Model:      OH250570 Description: Sensor Optical, frame 25x22, 65x55x15mm, static and dynamic, resolution 1mm, 18-30V DC, PNP/NPN NC/NO, M8 plug connector 3-pin, IP67, aluminum+plastic, With time function *Note: OV350170 and OY206000 do not exist anymore, here fore we offered OH250570
