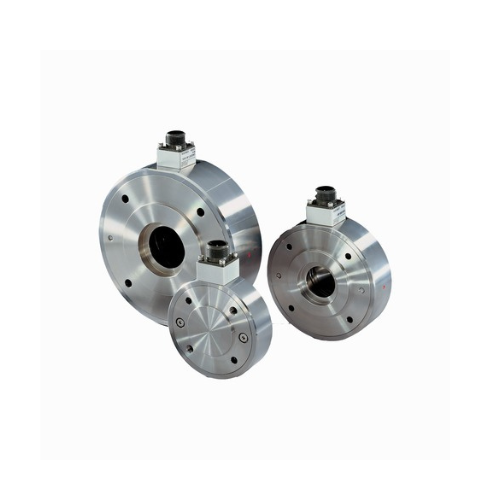

LMGZ313.25K.65.H15 FMS Việt Nam
Hãng sản xuất: FMS Technology
Ms Như
0373 238 670
live:.cid.5bbb32e4b8465e80LMGZ313.25K.65.H15 FMS Việt Nam
General technical details
| Sensitivity | 1,8 mV/V |
|---|---|
| Tolerance of sensitivity | <± 0,2 % |
| Accuracy class | ± 0,3 % |
| Temperature coefficient | ± 0,1 %/10K |
| Temperature range | -10 to 60 °C (14 to 140 F) |
| Input resistance | 350 Ω |
| Power supply | 1 to 10 VDC |
| Overload protection rating | 20 times nominal force |
| Material main body | Stainless steel |
| Protection class | IP 42 |
| Electrical connection | Male flange connector, Amphenol, 4-pole |
| Repeatability error | 0.05% |
| Measuring range | 100:1 |
Available sizes
| Sizes | Nominal forces in N | Shaft diameter |
|---|---|---|
| LMGZ200 | 33, 50, 100 | 9 mm |
| LMGZ201 | 50, 125, 250, 500 | 12 mm |
| LMGZ203 | 50, 125, 250, 500, 750, 1000 | 17 mm |
| LMGZ204 | 125, 200, 375, 750, 1500 | 20 mm |
| LMGZ205 | 125, 200, 375, 750, 1500 | 25 mm |
| LMGZ307 | 375, 750, 1500, 3000 | 35 mm |
| LMGZ308 | 375, 750, 1500, 2000, 3000 | 40 mm |
| LMGZ310 | 375, 750, 1500, 3000, 6000, 12000 | 50 mm |
| LMGZ312 | 375, 750, 1500, 3000, 6000, 12000 | 60 mm |
| LMGZ313 | 2500, 5000, 10000, 25000 | 65 mm |
| LMGZ316 | 2500, 5000, 10000, 25000 | 80 mm |
