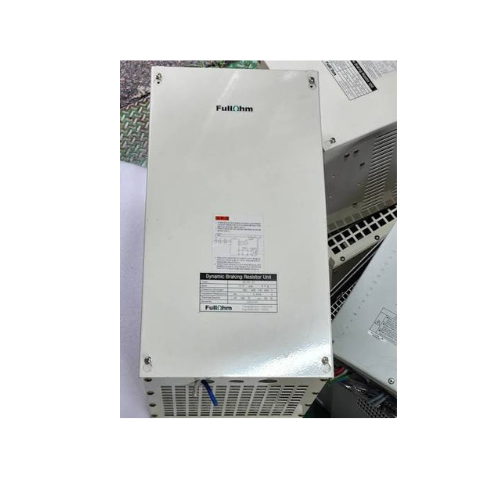

MCRF-ST 9.6 kW – 13.6 Ω – J
FULLOHM MCRF-ST là dòng điện trở hãm dạng vỏ kim loại (Metal Clad Braking Resistor), thường dùng cùng biến tần/bộ hãm để tiêu tán năng lượng tái sinh khi động cơ giảm tốc hoặc dừng nhanh. Dòng MCRF-ST có công suất từ khoảng 2 kW đến 85 kW tùy cấu hình.
| Thông số | Giá trị |
|---|---|
| Model | MCRF-ST |
| Công suất định mức | 9.6 kW |
| Điện trở | 13.6 Ω |
| Dung sai J | ±5% |
| Loại | Dynamic Braking / Braking Resistor |
| Nhiệt độ làm việc | -55°C ~ +200°C |
| Cách điện | ≥20 MΩ |
| Độ bền điện môi | AC 2.500 V / 1 phút |
| Kích thước dòng 9.6K | khoảng 550 × 260 × 252 mm theo bảng kích thước |
| Tùy chọn thermostat | T145 / T200 tùy cấu hình |
